A Homeowner's Guide to Curtain Wall Glass in the UAE
A Homeowner's Guide to Curtain Wall Glass in the UAE
A curtain wall glass system replaces a solid, structural wall with an expansive, high-performance glass façade. It wraps the exterior of a villa, creating stunning panoramic views and flooding interiors with natural light.
Unlike a traditional window set into a wall, a curtain wall is a non-structural 'skin' that hangs from the building's main frame. This allows for the seamless floor-to-ceiling designs that define modern UAE architecture.
What Is a Curtain Wall and Why Is It Perfect for UAE Villas?
A curtain wall is an outer covering of a building in which the outer walls are non-structural. It does not carry the load of the floors above it, only its own weight. Think of it as a high-tech shield that keeps out the elements while letting in spectacular views.
This technology is a top choice for modern villas in Dubai and Abu Dhabi, where design prioritizes maximising views and creating a sense of openness. For a homeowner in Arabian Ranches, a curtain wall can transform a living room by visually merging it with the garden. On Palm Jumeirah, it delivers completely unobstructed sea views from a master bedroom.
Key Types of Curtain Wall Systems
Understanding the two main types will help you plan your project. The best choice depends on your design goals, timeline, and the specific layout of your villa.
- Stick-Built Systems: These are assembled component by component on-site. The vertical and horizontal aluminium profiles (the "sticks") are installed first, followed by the glass panels. This method offers excellent design flexibility, making it ideal for custom-built villas with unique architectural features.
- Unitised Systems: These arrive as large, prefabricated panels, complete with frames and glass. Built in a factory-controlled environment, each unit is simply lifted and fixed into place. This approach is much faster and ensures higher quality control, minimising disruption during a renovation.
The key takeaway is that the curtain wall itself bears no structural load from the building. It is anchored to the villa’s main structure, giving architects and designers immense freedom to create light-filled façades that are impossible with traditional construction.
This architectural freedom makes curtain wall glass a defining feature of luxury residential projects across the UAE. It delivers both aesthetic grandeur and the practical performance needed to withstand the demanding local climate.
If you're planning a renovation or villa upgrade in the UAE, Swift Rooms can help you specify the best window and door system for your project. Contact us today for a quote or consultation.

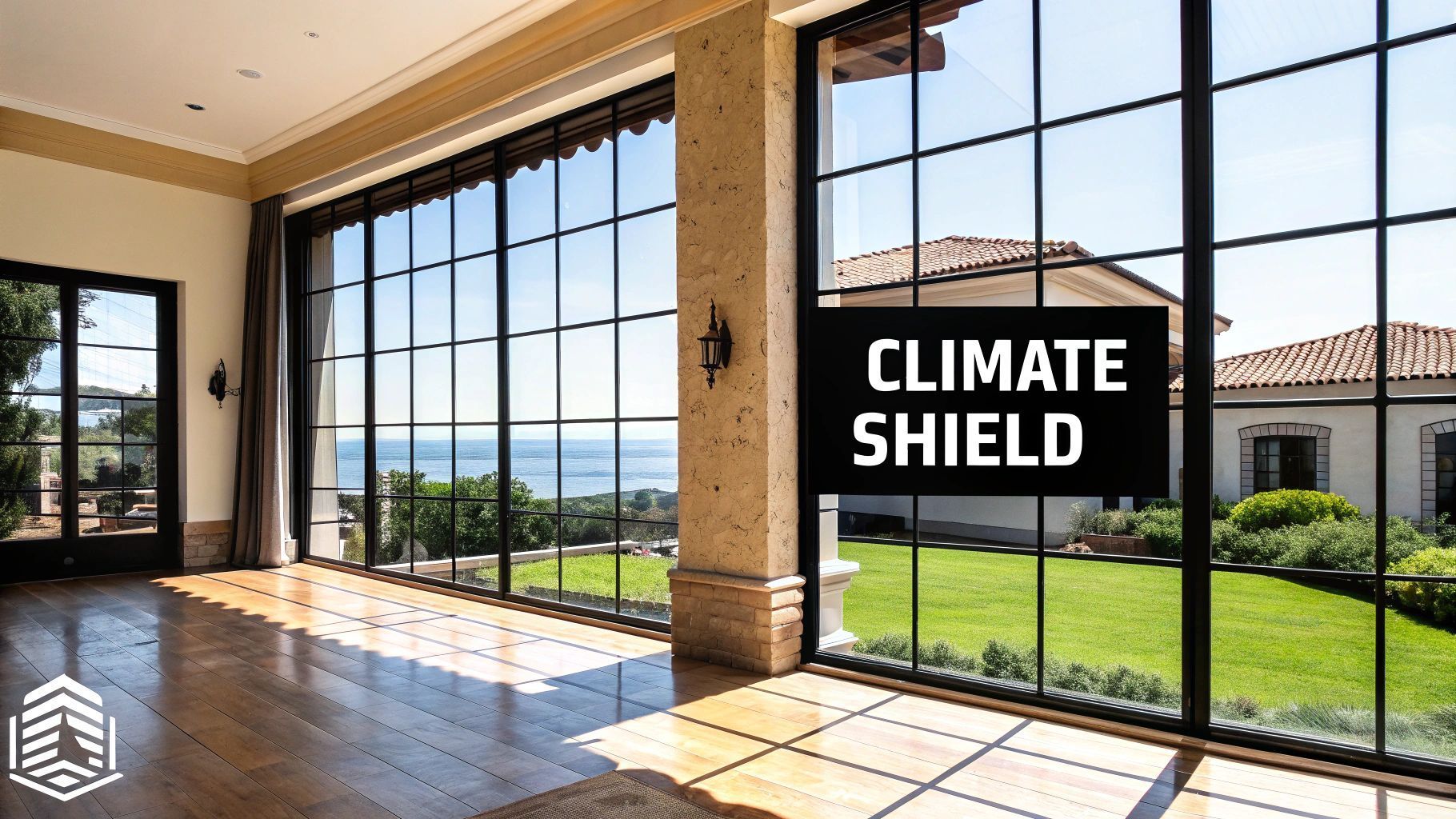

How Modern Curtain Walls Combat the UAE Climate
Beyond aesthetics, a high-performance curtain wall glass system is your villa’s primary defence against the harsh UAE climate. It acts as a sophisticated shield, engineered to keep your home comfortable and energy-efficient, even during peak summer months.
A crucial component is advanced glazing. Modern systems use double or even triple-glazed Insulated Glass Units (IGUs) with a low-emissivity (low-e) coating. This invisible layer reflects a significant amount of the sun's infrared heat while allowing visible light to pass through. The result is less strain on your air conditioning and lower DEWA bills.
Sealing Out Sand, Dust, and Noise
The constant challenge of dust, noise, and humidity is a reality for UAE residents. Premium curtain wall systems from brands like Cortizo and Vetromax are engineered with advanced gaskets and seals to create an airtight and watertight barrier.
For a villa in a community like Arabian Ranches or near the coast on Palm Jumeirah, this provides two major benefits:
- Acoustic Insulation: Multi-layered glass and robust seals dramatically reduce outside noise from traffic or construction, creating a peaceful indoor environment.
- Dust and Sand Prevention: During a sandstorm, a properly installed curtain wall prevents fine dust from infiltrating your home, improving indoor air quality and reducing cleaning.
By effectively blocking external elements, a modern curtain wall system does more than offer a view. It actively enhances your quality of life by creating a quieter, cleaner, and more comfortable living environment.
This focus on performance is driving growth in the architectural glass market. The Middle East glass market was valued at USD 2.56 billion in 2024 and is projected to hit USD 4.33 billion by 2032, driven by demand for energy-efficient solutions. You can explore more about these market trends to see how advanced glass is shaping regional construction.
Choosing the right curtain wall glass is an investment in a solution built for the unique challenges of the UAE. From blocking intense solar heat to sealing out invasive dust and humidity, these systems provide a powerful combination of practical performance and architectural beauty.
If you're planning a renovation or villa upgrade in the UAE, Swift Rooms can help you specify the best window and door system for your project. Contact us today for a quote or consultation.

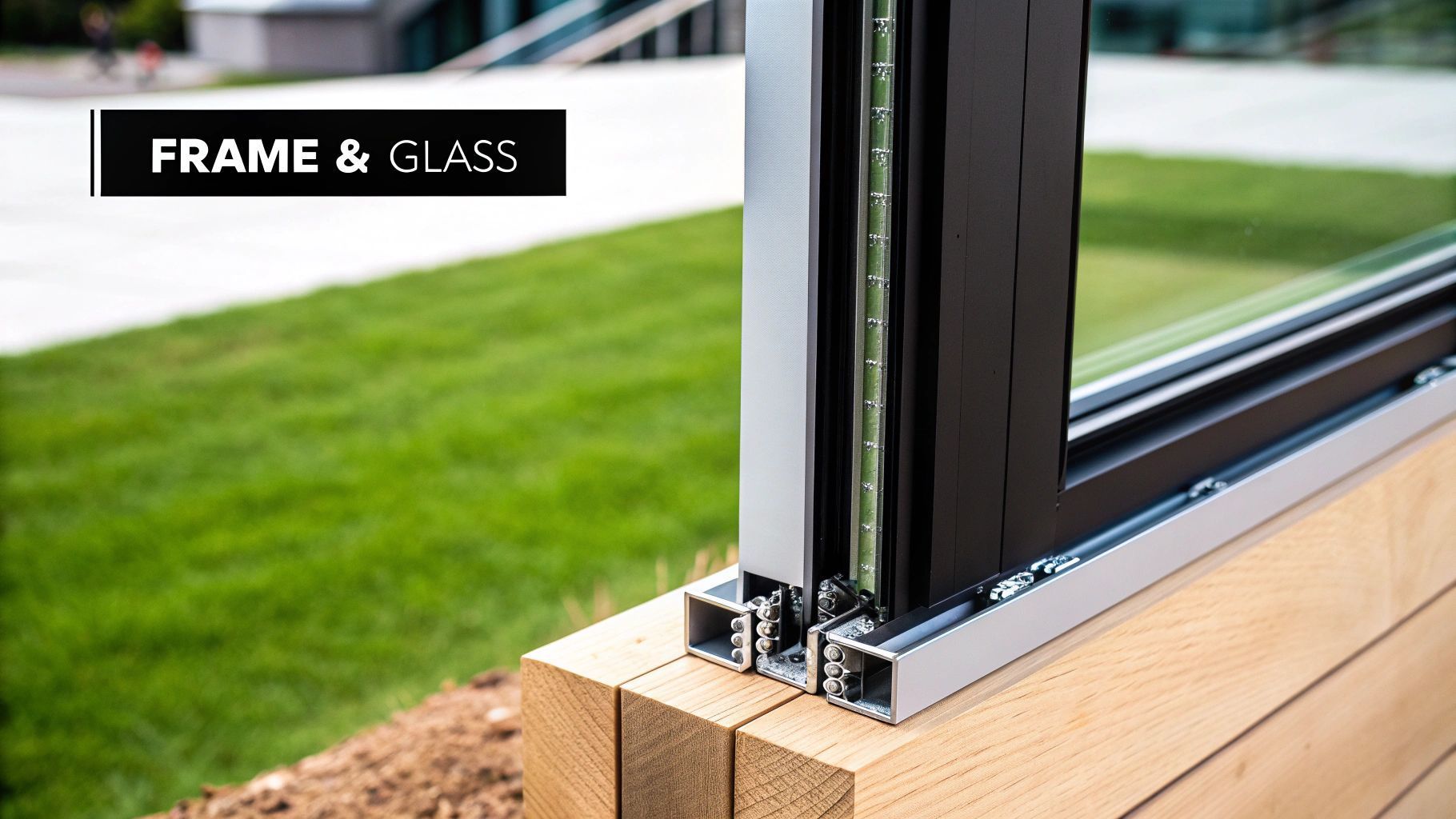

Choosing the Right Frame and Glass for Your Villa
Designing the ideal curtain wall for your UAE villa involves two key decisions: the frame material and the glass type. These choices significantly impact your home's appearance, cooling costs, and resilience against heat, humidity, and dust.
A successful curtain wall is a high-performance system where the frame provides structural support and the glass delivers thermal protection. For optimal results, both components must be specified to work together.
Selecting the Ideal Frame Material
For villas in Dubai and Abu Dhabi, the frame material must be strong enough to support large glass panels while resisting corrosion, especially in coastal areas like Palm Jumeirah where salt-laden air is a factor.
The following table compares the most common frame materials used in high-end UAE residential projects.
Curtain Wall Frame Material Comparison for UAE Homes
| Material | Key Advantage | Best For | Example System |
|---|---|---|---|
| Aluminum | Strength & Slim Profiles. Allows for massive glass spans with minimal framing, creating a sleek, modern look. Naturally rust-resistant. | Luxury villas aiming for a minimalist aesthetic and panoramic views, especially in coastal zones. | Cortizo Cor Vision Plus |
| uPVC | Superior Insulation. Excellent thermal and acoustic performance, helping to keep homes cool and quiet. A great value-for-money option. | Projects where energy efficiency and soundproofing are the top priorities. Ideal for homes near busy roads or under flight paths. | Deceuninck Systems |
| Steel | Unmatched Strength. The strongest option, capable of supporting the heaviest and largest glass units for truly dramatic architectural statements. | Landmark architectural projects or villas requiring exceptionally large, custom glass installations where structural integrity is paramount. | Custom Fabricated Systems |
While aluminum is the most popular choice for its sleek, contemporary aesthetic, uPVC systems from providers like Deceuninck offer excellent thermal insulation. The best material depends on your project's specific performance and design goals.
When considering frames, pay attention to the profile thickness. This detail can significantly alter the final appearance. Our guide on the differences between 50mm and 35mm curtain wall systems provides more information.
Choosing the Right Glass Type
The glass itself is your primary defence against the UAE climate. Specifying the correct type will lead to tangible reductions in cooling costs and improved comfort. While visualising the final result can be challenging, tools for effective space visualization can help you understand how different glass choices will look and feel inside your villa.
These are the primary glass types for residential projects:
- Tempered Glass: This safety glass is heat-treated to be up to four times stronger than standard glass. If it breaks, it shatters into small, pebble-like pieces, reducing the risk of injury.
- Laminated Glass: This consists of a tough plastic interlayer (PVB) sandwiched between two panes of glass. If the glass breaks, the interlayer holds the fragments together, enhancing security and blocking UV radiation.
- Insulated Glass Units (IGUs): This is the gold standard for energy efficiency in the UAE. An IGU comprises two or three glass panes separated by a sealed space filled with air or an inert gas like argon. This gap acts as a powerful insulator, preventing heat transfer and keeping your villa cool.
For the ultimate performance, these technologies can be combined. An IGU made with laminated and tempered glass provides an unbeatable solution for safety, security, and thermal insulation in any UAE home.
If you're planning a renovation or villa upgrade in the UAE, Swift Rooms can help you specify the best window and door system for your project. Contact us today for a quote or consultation.
Key Performance Factors for UAE Homes
While aesthetics are important, the true value of a curtain wall glass system in the UAE lies in its performance. To ensure your villa remains cool, quiet, and protected, it's essential to understand a few key technical factors.
These specifications directly impact your indoor comfort and energy consumption. For homeowners in Dubai, focusing on these performance metrics is a practical way to make a long-term investment in your property.
Decoding Thermal Performance
The U-value is a critical metric that measures how well a curtain wall prevents heat transfer. A lower U-value indicates better insulation.
In the UAE's climate, a low U-value is essential to keep cooled air inside and hot air out.
The Solar Heat Gain Coefficient (SHGC) measures how much of the sun’s heat passes through the glass. A low SHGC means the glass is effectively blocking solar radiation, which reduces the load on your air conditioning system.
When specifying a curtain wall for a UAE villa, always request the lowest possible U-value and SHGC. This combination is the foundation of an energy-efficient home, leading to lower DEWA bills and a more comfortable living environment year-round.
Built to Withstand the Elements
Beyond heat, a curtain wall must be engineered to handle the UAE's specific environmental challenges. Two factors are critical for villas, especially in coastal or exposed locations like Palm Jumeirah or Saadiyat Island in Abu Dhabi.
- Wind Load Resistance: This measures the system's ability to withstand strong winds without flexing, whistling, or failing. For beachfront villas, a high wind load rating is a crucial safety and structural requirement.
- Waterproofing and Air Sealing: A perfect seal is your best defence against humidity, sand, and dust. Premium systems from brands like Vetromax are engineered with advanced gaskets that create an airtight barrier. This stops dust intrusion during a sandstorm and prevents humid air from causing condensation.
Glass coatings also play a significant role. Tinted and reflective coatings can further reduce solar heat gain while providing daytime privacy. To understand these technologies better, learn more about why Low-E glass matters in Dubai. Of course, these systems work best as part of a holistic approach to home energy management; these tips for maximizing home energy efficiency offer broader advice.
If you're planning a renovation or villa upgrade in the UAE, Swift Rooms can help you specify the best window and door system for your project. Contact us today for a quote or consultation.
Understanding the Curtain Wall Installation Process
Upgrading a villa with curtain wall glass is a well-defined process. Understanding the key stages helps you plan your renovation with confidence, ensuring a smooth journey from initial concept to the final result. The process involves careful coordination between design, fabrication, and on-site installation.
The project begins with a design consultation to define your vision and performance requirements. This is followed by a structural assessment of your villa. An engineer must certify that the building's frame can safely support the weight of the new glass façade—a vital step for both new builds and renovations in communities like Emirates Hills or Arabian Ranches.
From Factory to Façade
Once the engineering is approved, the project moves to fabrication. Every component, from the aluminium frames to the high-performance glass panels, is manufactured with precision in a controlled environment. This ensures all parts meet strict quality standards before arriving at your property.
The final phase is on-site installation, where expertise is critical. The method used directly impacts the project timeline.
- Stick-Built Systems: In this traditional approach, frames and glass are assembled piece by piece on-site. It offers excellent design flexibility but is more labour-intensive.
- Unitised Systems: Large, pre-assembled panels are delivered to your villa and craned into place. This method is significantly faster and often ensures superior quality control since assembly occurs in a factory setting.
Market trends show a clear preference for faster, higher-quality installations. The unitised curtain wall segment accounted for nearly 65% of regional market revenue in 2019. The overall market is projected to reach USD 6.5 billion by 2027. You can read the full research on the glass curtain wall market for more details.
For a deeper look at the traditional method, our guide to stick system curtain walls in the UAE is a useful resource.

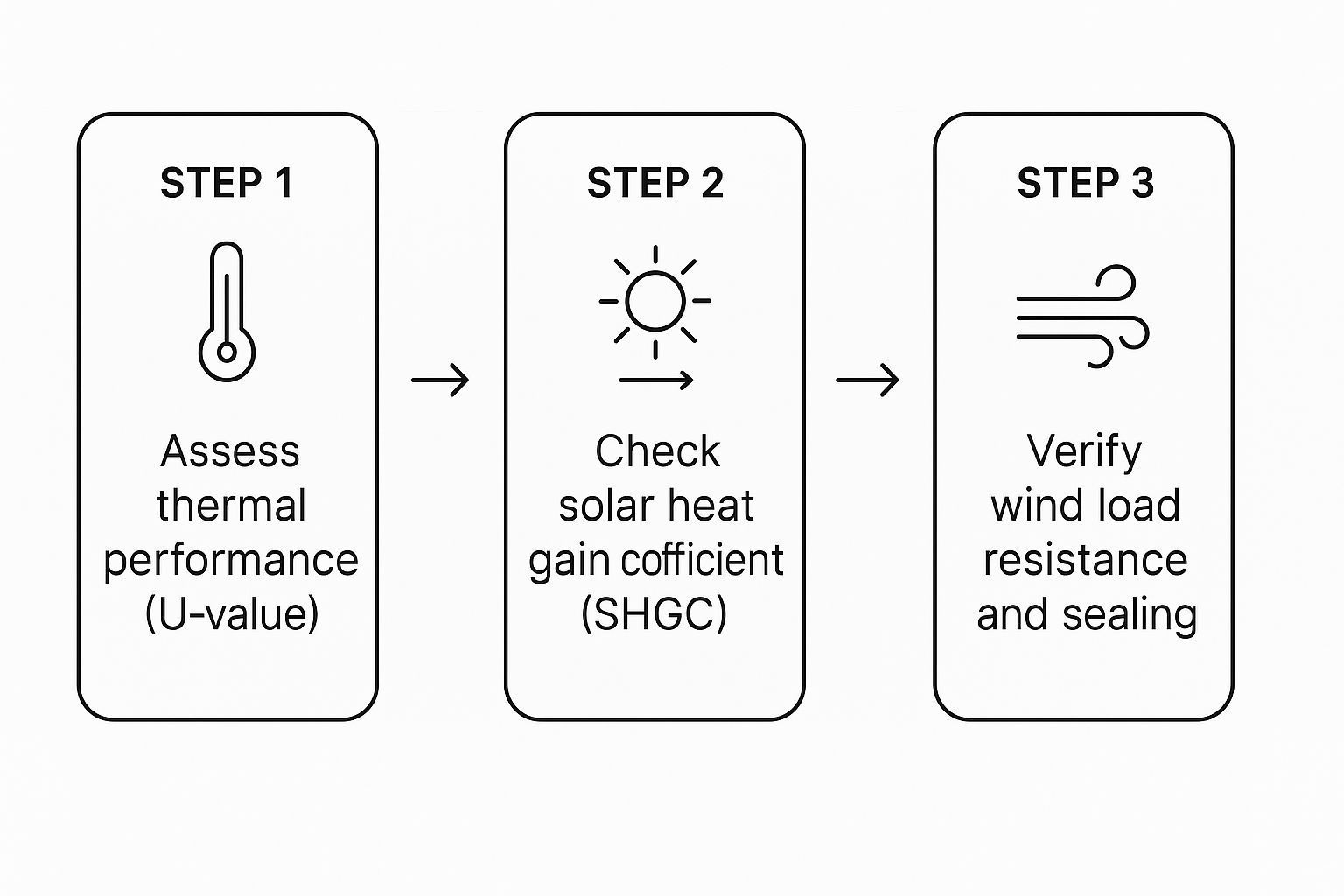

This infographic outlines the essential performance checks verified during installation.
Working with certified installers is non-negotiable. They ensure every panel is perfectly aligned and sealed, guaranteeing your investment delivers flawless performance for decades.
If you're planning a renovation or villa upgrade in the UAE, Swift Rooms can help you specify the best window and door system for your project. Contact us today for a quote or consultation.
How to Maintain Your Curtain Wall Glass
A high-quality curtain wall is a long-term investment in your villa's aesthetic and comfort. Fortunately, these systems require minimal maintenance to keep them looking and performing flawlessly for years.
This simplicity is a significant advantage. The UAE market for curtain walls is growing, but complex projects can involve high installation and upkeep costs. For residential villas, however, maintenance is surprisingly straightforward. You can learn more about curtain wall market trends to understand what is driving this growth.
A Practical Maintenance Checklist
Maintaining your curtain wall does not require intensive labour. The biggest challenges in the UAE are dust and intense sun, but a simple routine is sufficient to manage them.
- Routine Cleaning: Regularly wash the glass and frames with a soft cloth, clean water, and a mild, non-abrasive soap. This prevents dust and grime from sandstorms from settling and scratching the glass. Avoid harsh chemicals, which can damage low-e coatings or the frame’s finish.
- Seal and Gasket Inspection: Twice a year, inspect the rubber seals and gaskets around the frames. The UAE's high UV exposure can cause these materials to become brittle. Look for any signs of cracking or shrinking, as these seals are your primary defence against dust, humidity, and water ingress.
- Clear Drainage Channels: Curtain walls have small, built-in drainage channels (weep holes) at the base of the frames to allow moisture to escape. Ensure these channels are clear of sand and debris so they can function correctly.
A proactive approach is key. Identifying and clearing a clogged weep hole or a worn gasket early prevents minor issues from becoming major problems. This is essential for ensuring your curtain wall delivers decades of reliable performance.
If you're planning a renovation or villa upgrade in the UAE, Swift Rooms can help you specify the best window and door system for your project. Contact us today for a quote or consultation.
Your Questions Answered: Curtain Walls in the UAE
Making a significant design decision like adding a curtain wall naturally brings questions. Homeowners and developers across the UAE often ask about durability, cost, and retrofitting possibilities.
Clear answers are the first step toward a confident project, whether it's a new build in Dubai Hills or a renovation on Palm Jumeirah. Here are some of the most common questions we address.
Can a Curtain Wall Withstand a UAE Sandstorm?
Yes. Modern curtain wall systems are engineered for extreme weather performance.
High-quality systems from brands like Cortizo and Vetromax feature robust frames and multi-layered gaskets. This design creates a virtually airtight seal that withstands high wind pressure and prevents sand and dust from entering, keeping your home clean and protected.
Can I Add a Curtain Wall to My Existing Villa?
Yes, retrofitting a curtain wall is a popular upgrade that modernises older properties and dramatically transforms their aesthetic.
The process requires a structural assessment by a qualified engineer to confirm your villa's existing frame can safely support the weight of the new glass façade. It is an excellent way to revitalise homes in established communities like Jumeirah or Arabian Ranches, opening up living spaces and increasing property value.
What About Privacy with Large Glass Walls?
Privacy is managed through glass specification and interior design. You can select tinted, frosted, or reflective coatings that limit visibility from the outside during the day while still allowing abundant natural light into your home.
For evening privacy, these expansive glass walls pair well with solutions like automated blinds or full-height curtains. This gives you the best of both worlds: an open, light-filled home by day and complete privacy when desired.
How Much Does a Curtain Wall Cost for a Dubai Villa?
The cost depends on several factors, including the system type (e.g., Cortizo Cor 70 vs. Cor Vision Plus), glass specification (double vs. triple glazing), and design complexity.
While it is a premium investment compared to standard windows, the long-term value comes from lower energy bills, exceptional durability, and a significant increase in property value. The most accurate approach is to request a custom quote based on your specific project requirements.
