01 Why a brand like Vetromax for my Entrance Pivot Door?

Vetromax is a UK- and UAE-based aluminium systems manufacturer specialising in premium, minimalist façade and glazing solutions. Known for ultra-slim profiles like the Vetro Façade 35mm, Vetromax designs and supplies structural glazing, sliding systems, and bespoke aluminium assemblies tailored for contemporary architecture. With a strong presence in the Gulf through Building Envelope Systems Manufacturer LLC, Vetromax offers systems engineered for the region’s extreme climate while maintaining European design standards—making it a trusted choice for high-end villas, showrooms, and architectural feature walls.

02 Why choose a company like Swiftrooms as your glazing contractor?

Swift Rooms LLC, based in Dubai, is a premier provider of high-quality aluminum and glazing solutions, specializing in the design, manufacture, and installation of bespoke windows, doors, and architectural systems. With a commitment to excellence over the last 13 years, Swift Rooms combines innovative European designs with meticulous local craftsmanship, ensuring each product meets the highest standards of durability, aesthetics, and performance. Our dedicated team of experts offers personalized service, from initial consultation through to final installation, making sure that every project is tailored to the unique needs of our clients. Serving the UAE market with integrity and expertise, Swift Rooms LLC is a trusted name for those seeking superior solutions in the residential and commercial sectors.

03 A Technical Overview

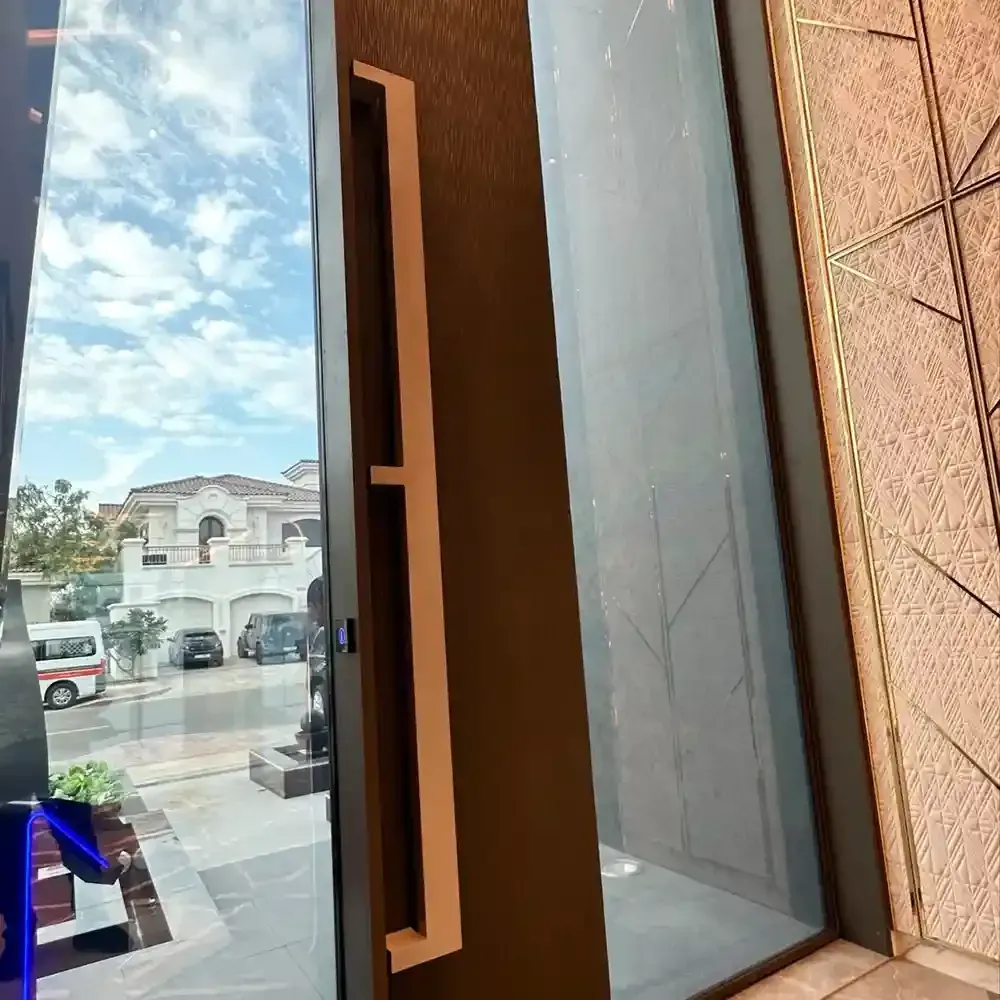

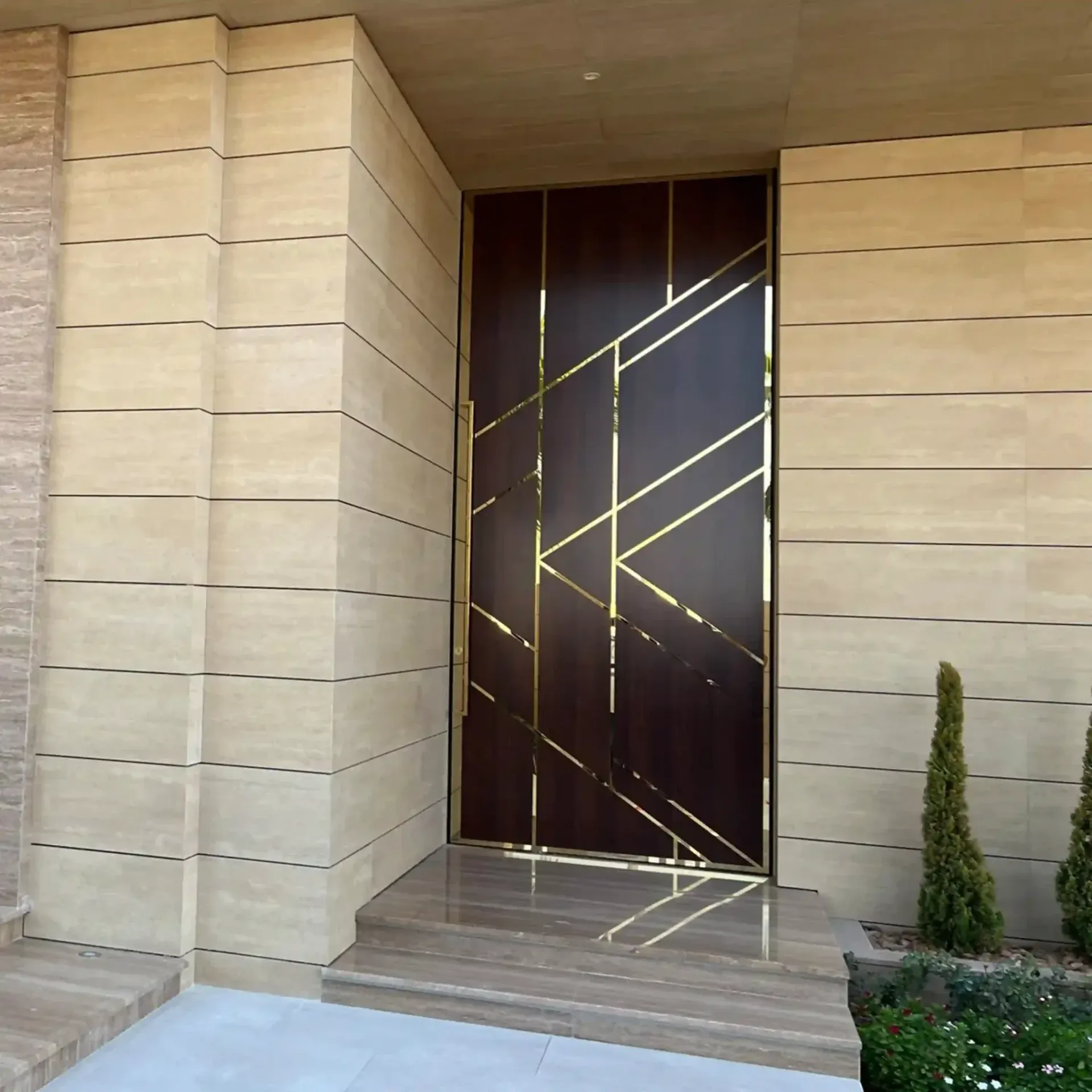

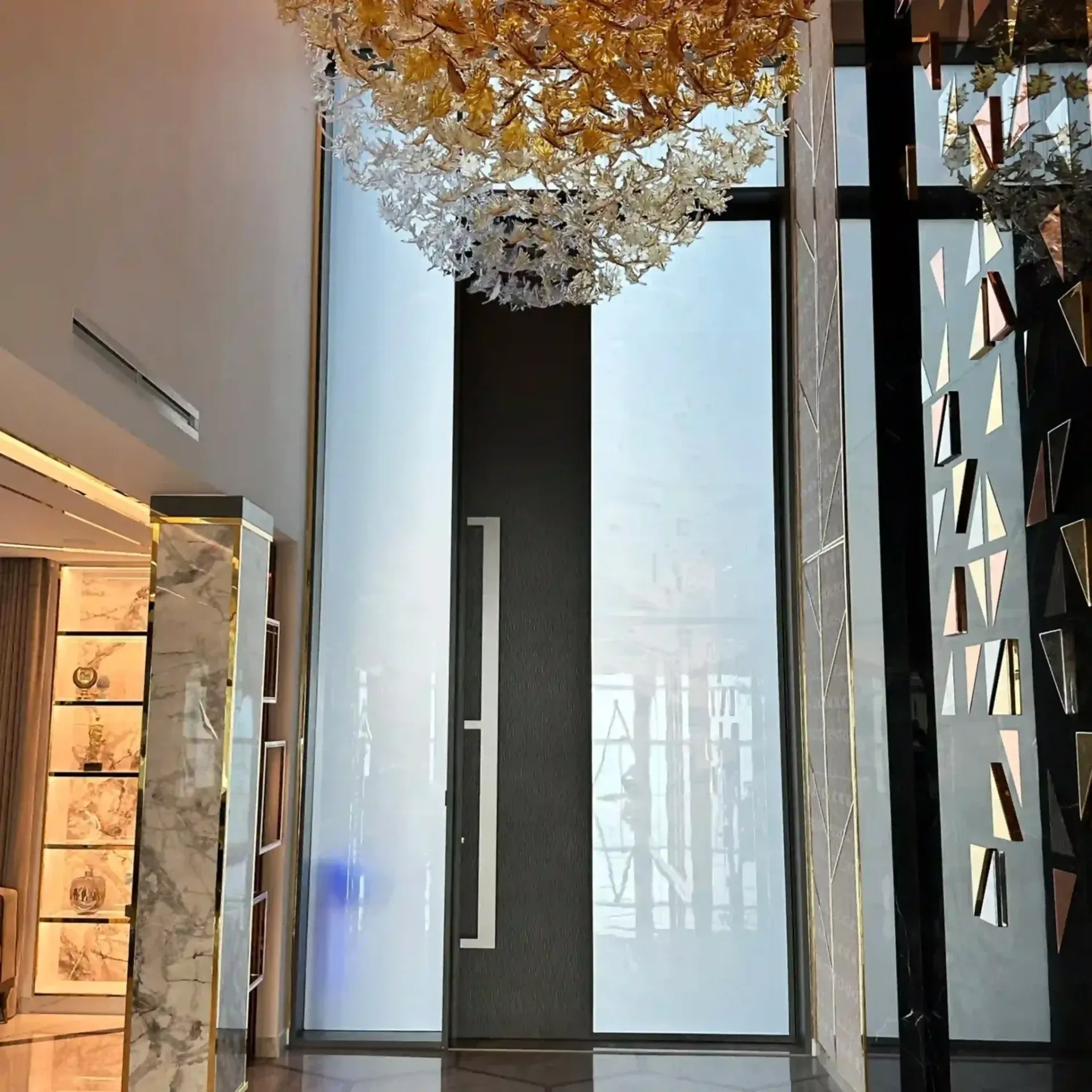

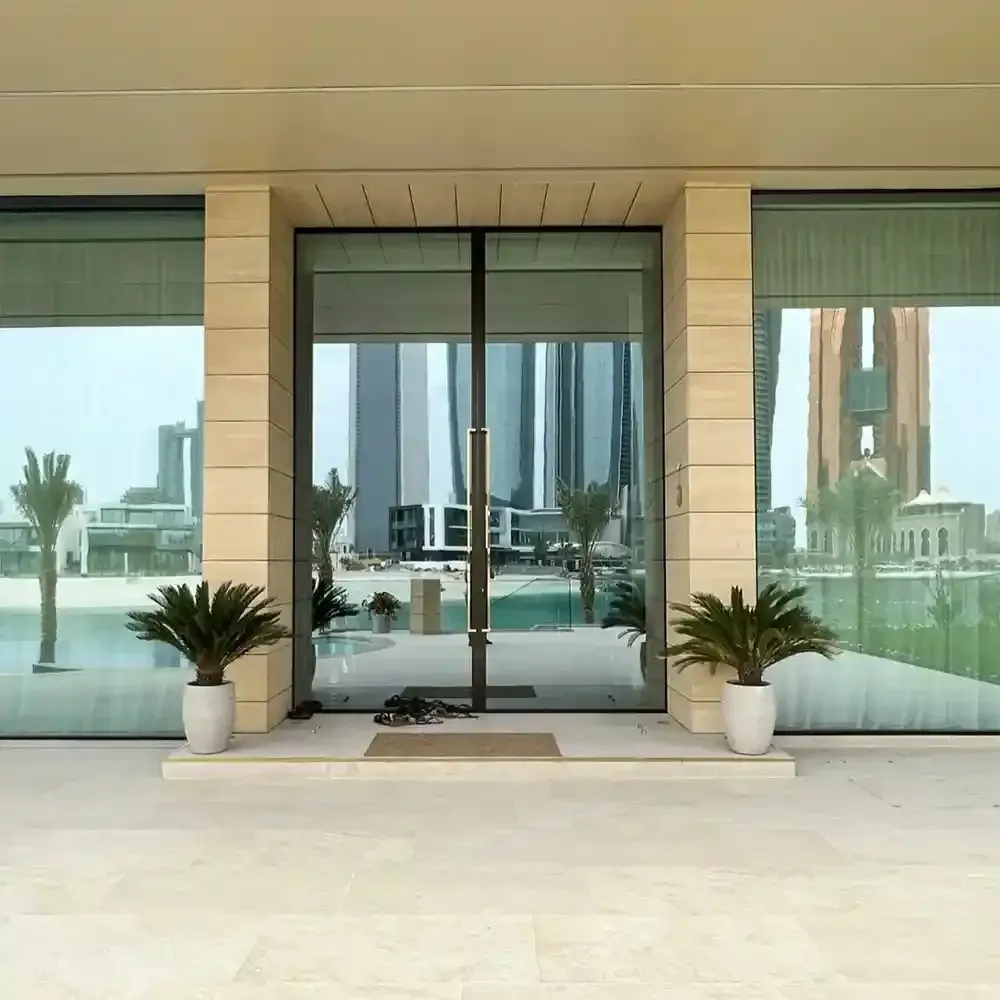

The Vetromax Vetro Pivot is a minimalist aluminium pivot door system engineered for projects that demand bold entrances, sleek sightlines, and durable performance. Combining architectural impact with functional excellence, it is designed for premium residential and commercial applications across the GCC region.

System Design & Dimensions

• Visible Sightline: Slim perimeter frame with minimal visual obstruction
• Frame Depth: 80 mm
• Sash Depth: 65 mm
• Maximum Door Leaf Weight: Up to 250 kg
• Panel Size Capability: Up to 1500 mm width x 3000 mm height (varies by specification)

Design Features

Pivot Mechanism
The concealed pivot hinge system allows for smooth, effortless operation while supporting large-format door panels. The hidden pivot creates a floating visual effect with clean, minimalist lines.

Frameless Glass Look
The Vetro Pivot can be configured with large glazed panels and minimal aluminium framing, enhancing transparency and maximising natural light.

Flexible Opening Direction
The pivot system can be customised for inward or outward opening and allows for partial or full 180-degree rotation, depending on project requirements.

Glazing Specifications

• Compatible Glass Thickness: 28 mm double glazing standard
• Glass Types: Low-E, laminated, or reflective options
• Acoustic Options: Available with laminated acoustic glass for improved sound insulation

Thermal & Acoustic Performance

• Thermally broken aluminium profiles for energy efficiency
• Reduced heat transfer and improved insulation
• Tight perimeter gaskets for enhanced air and water sealing
• Air Infiltration: Class 4 (EN 12207:2000)
• Water Tightness: Class 7A (EN 12208:2000)
• Wind Resistance: Class B3/B4 (EN 12210:2000)

Hardware & Operation

• Concealed heavy-duty pivot hinge system
• Slimline handle options to complement minimal design
• Optional multipoint locking for enhanced security
• Smooth, durable operation with high-grade hardware components

Finish & Material

• Material: High-performance extruded aluminium
• Finish Options: Powder-coated with matte, satin, or textured finishes
• Custom Colours: Full RAL colour range available

Application Areas

• Statement entrances for private villas and penthouses
• Contemporary main doors for residential and commercial projects
• Internal feature doors in high-end architectural designs
• Glass façades requiring discreet, minimal door integration


Contact us today to schedule a consultation and explore the possibilities for your home.
