Who are Vetromax?

Vetromax is a UK- and UAE-based aluminium systems manufacturer specialising in premium, minimalist façade and glazing solutions. Known for ultra-slim profiles like the Vetro Façade 35mm, Vetromax designs and supplies structural glazing, sliding systems, and bespoke aluminium assemblies tailored for contemporary architecture. With a strong presence in the Gulf through Building Envelope Systems Manufacturer LLC, Vetromax offers systems engineered for the region’s extreme climate while maintaining European design standards—making it a trusted choice for high-end villas, showrooms, and architectural feature walls.

02 Why should I choose Swiftrooms as my Glazing Partner?

Swift Rooms LLC, based in Dubai, is a premier provider of high-quality aluminum and glazing solutions, specializing in the design, manufacture, and installation of bespoke windows, doors, and architectural systems. With a commitment to excellence over the last 13 years, Swift Rooms combines innovative European designs with meticulous local craftsmanship, ensuring each product meets the highest standards of durability, aesthetics, and performance. Our dedicated team of experts offers personalized service, from initial consultation through to final installation, making sure that every project is tailored to the unique needs of our clients. Serving the UAE market with integrity and expertise, Swift Rooms LLC is a trusted name for those seeking superior solutions in the residential and commercial sectors.

03 A Technical Overview

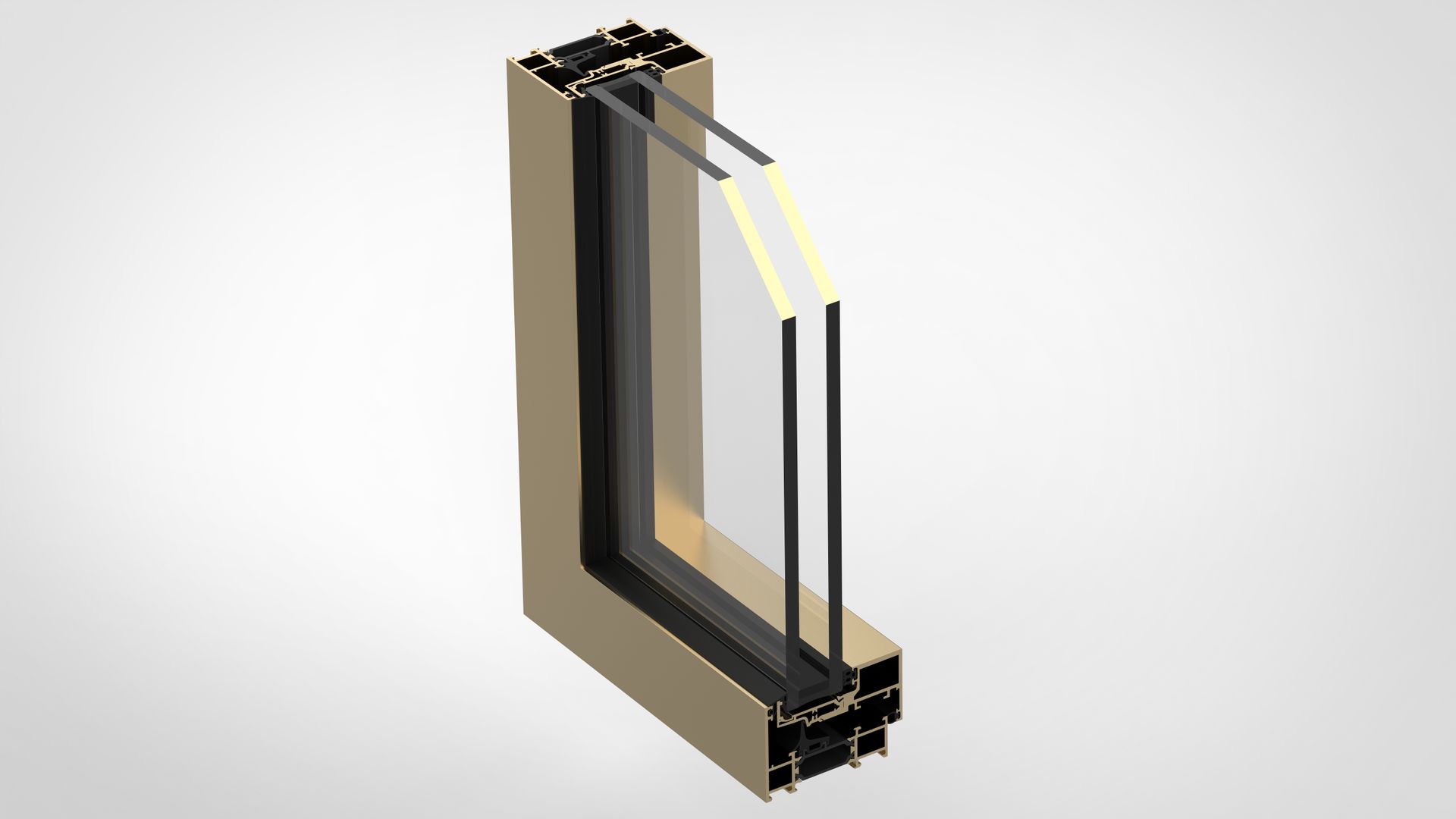

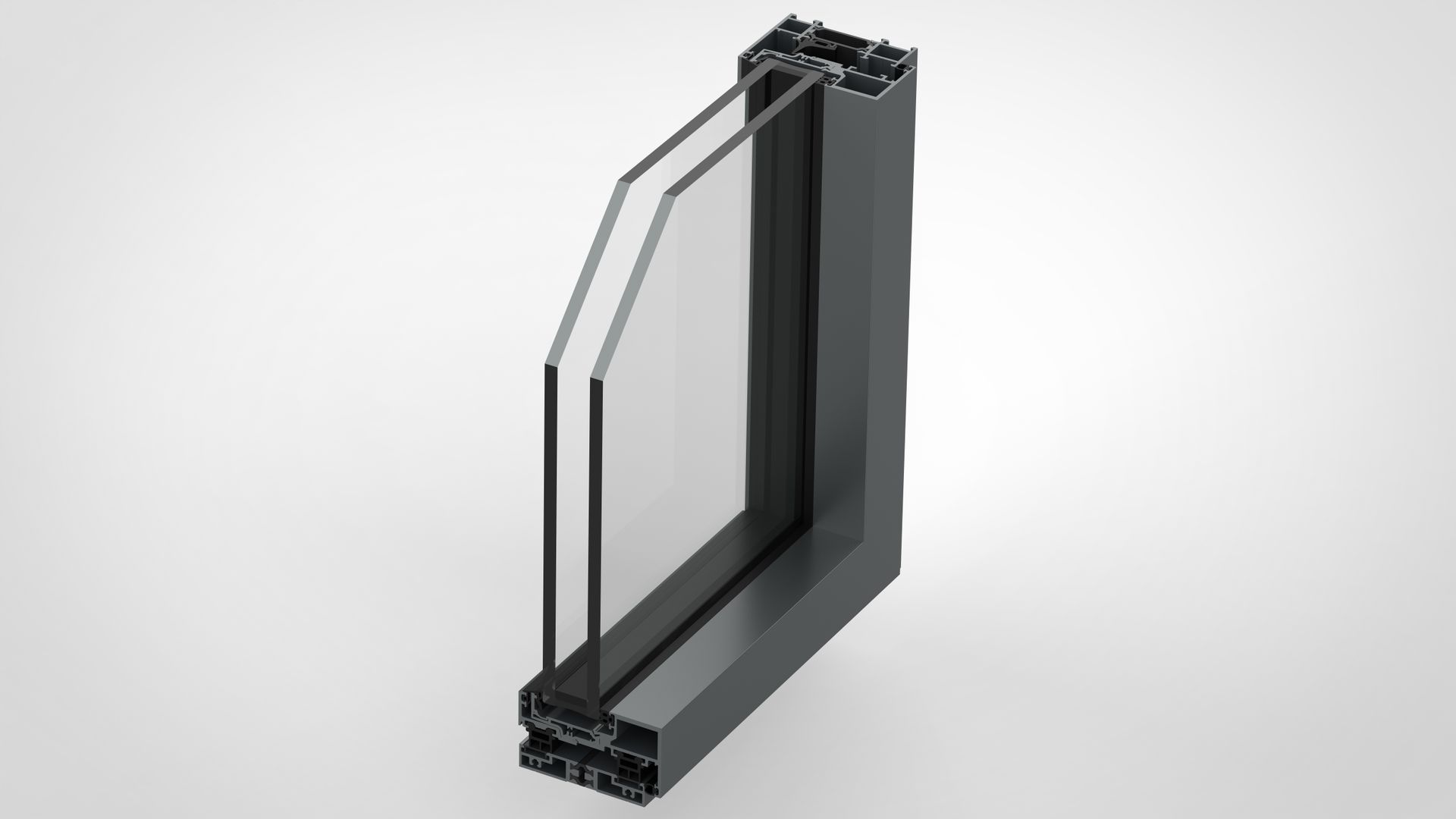

Vetromax Casement Hidden Sash 80 System

The Vetromax HS80 is a high-performance aluminium casement window and door system designed for durability, thermal efficiency, and modern aesthetics. Engineered for both residential and commercial applications, it offers a refined balance of structural strength and slimline design. Below is a technical overview of its key features:

System Dimensions:
Frame Depth: 80 mm
Sash Depth: 80 mm
Visible Sightline: From 66 mm (depending on configuration)

Design Variants:
Opening Types: Side-hung, top-hung, tilt & turn, fixed
Door Integration: Compatible with single/double doors and window-wall assemblies
Configuration Options: Inward and outward opening

Structural Stability:
Built with reinforced aluminium profiles to accommodate large glass sizes
Engineered for high wind load resistance, suitable for UAE coastal and inland zones
Tested to meet international standards for structural, air, and water performance

Glazing Specifications:
Glass Thickness Compatibility: 24 mm to 44 mm
Supports double and triple glazing
Optional laminated, Low-E, and acoustic glass

Standard Colours Available:
Aluminium Alloys: EN AW 6063 T5 / T6
Finishes: Powder-coated available in all standard RAL colours

Performance:
Integrated multi-chamber thermal break for enhanced insulation
High compression EPDM gasket system for air and water tightness
U-value potential below 1.5 W/m²K with triple glazing
Tested to BS/EN standards for weather resistance, security, and durability

The Vetromax HS80 system is ideal for modern villas and commercial spaces seeking a clean architectural finish, robust performance, and energy-efficient glazing—all while maintaining design flexibility for a range of opening types and integration with façade systems.
