Window Wall vs. Curtain Wall Systems: A Guide for UAE Villas
Window Wall vs. Curtain Wall Systems: A Guide for UAE Villas
When planning large glass installations for a villa in the UAE, the choice often comes down to two systems: window walls and curtain walls. A window wall is installed between a building's concrete floor slabs. In contrast, a curtain wall is a self-supporting envelope hung from the structure itself. This is a crucial choice that shapes your home's appearance, construction timeline, and ability to handle the region's demanding climate.
Understanding Window Wall and Curtain Wall Systems
In communities like Palm Jumeirah or Emirates Hills, where maximising views and ensuring climate resilience are vital, the distinction between these systems is critical. Though both deliver a floor-to-ceiling glass effect, their engineering, installation, and performance are very different. This guide compares them side-by-side to help you choose the right solution for your project.
The choice you make will impact everything from your project timeline to long-term energy bills. This summary shows how much the right system can affect a residential project.
As you can see, selecting the right system pays off in energy efficiency, material costs, and how quickly the project is completed.
Key Differences at a Glance
To make this choice clearer, let's break down the fundamental attributes of each system. Think of a window wall as a series of large, high-performance windows stacked between floors. A curtain wall acts as a single, continuous glass skin covering the building.
This table gives a quick overview of what sets them apart.
Window Wall vs. Curtain Wall: Key Differences
| Attribute | Window Wall | Curtain Wall |
|---|---|---|
| Structural Load | Each unit is self-supporting and sits between the floor slabs. | It's a non-structural "curtain" that hangs off the building and transfers wind loads to the main frame. |
| Installation Method | Installed level-by-level, usually from inside the building. | Installed from the exterior, often requiring cranes or extensive scaffolding. |
| Typical Application | Perfect for residential villas, townhouses, and mid-rise buildings in areas like Arabian Ranches. | Best suited for high-rise towers and luxury villas on Palm Jumeirah aiming for a seamless glass facade. |
| Aesthetics | The exposed slab edges create a defined, framed look on each floor. | Delivers that sleek, uninterrupted glass surface with incredibly slim sightlines. |
| Water & Dust Proofing | Sealing is critical at the joints where each floor's system meets the slab. | Creates a continuous, highly resilient barrier against water, sand, and air intrusion. |
The differences in how they're built and how they perform are significant. The window wall's floor-by-floor installation is faster and more cost-effective for villas, while the curtain wall's single-skin design offers superior performance and a premium aesthetic for larger, more ambitious designs.
If you're planning a renovation or a new villa in the UAE, getting the glazing right is one of the most important decisions you'll make. Swift Rooms can help you specify the best window and door system for your project. Contact us today for a quote or consultation.
Comparing Structural And Installation Methods
The biggest difference between a window wall and a curtain wall is how they connect to the building’s structure. This single distinction affects everything from project schedules to on-site logistics.
A window wall is essentially a floor-to-ceiling window system that sits between concrete floor slabs. Each level supports its own section. This is why you’ll see them so often in residential villas across the UAE—they are practical and fit neatly into the floor-by-floor construction sequence.
A curtain wall, on the other hand, is entirely different. It’s a non-structural envelope that hangs off the building’s main frame like a curtain, often spanning multiple floors in one seamless skin. This method requires more intensive engineering but delivers a stunning, uninterrupted glass aesthetic. For example, a renovation in Arabian Ranches would benefit from the manageable installation of a window wall, while a new luxury tower on Palm Jumeirah would likely demand a curtain wall for its visual impact.

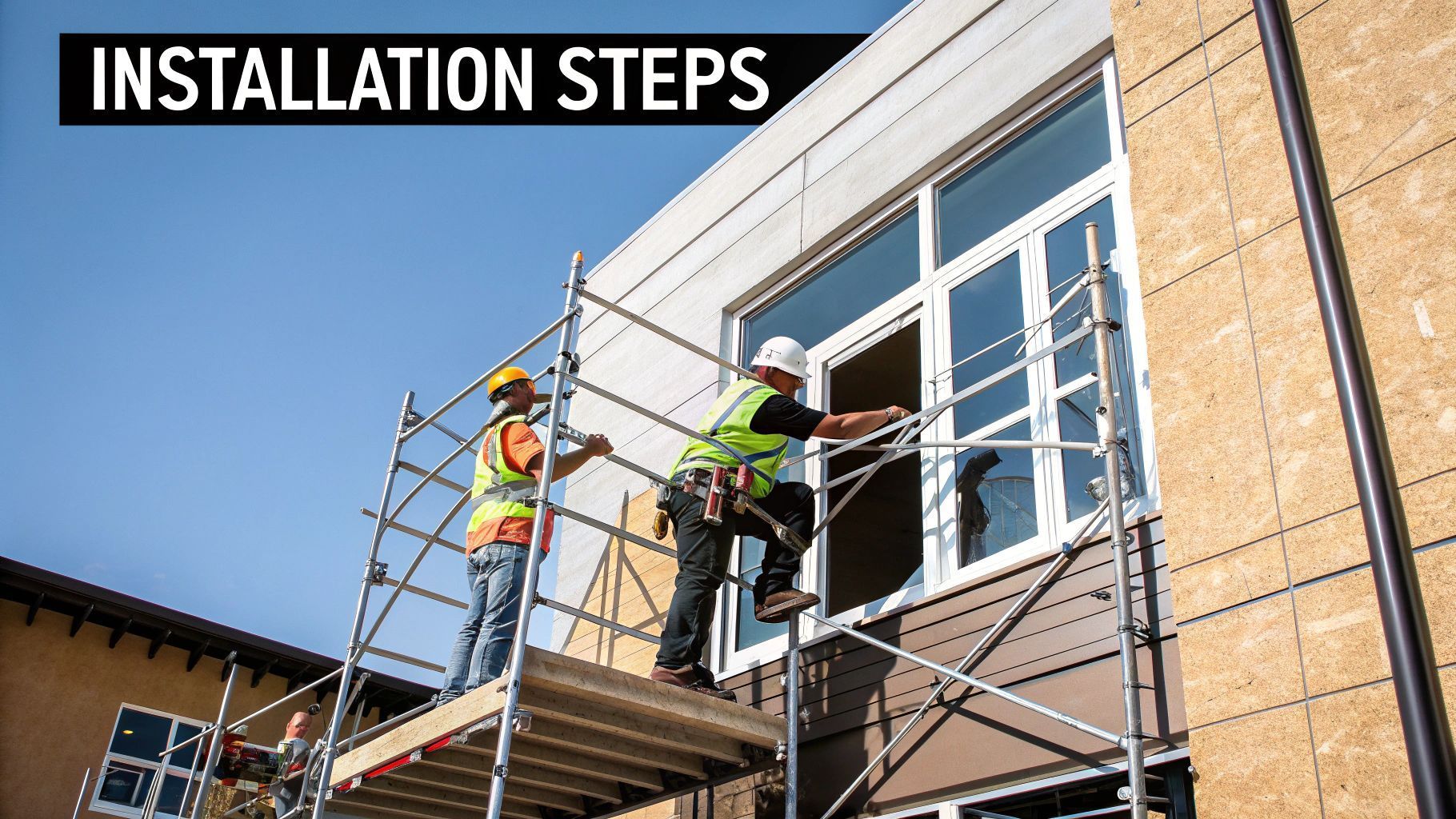

The Installation Process Explained
With a window wall, the installation crew typically works from inside the building, installing one floor at a time. This sequenced process allows different trades to work on other floors simultaneously, a major advantage for keeping projects moving.
Curtain wall installation is an outside-in job. It usually involves cranes and extensive scaffolding to lift and secure large, prefabricated panels to the building's exterior. While more involved to set up, it can speed up the final cladding of the building once the engineering is sorted.
"Key Takeaway: Window walls carry their own weight on each floor, whereas curtain walls hang off the main structure and transfer the entire wind load to it. This fundamental difference dictates everything from material choices to the project timeline itself."
Labour And Project Timeline Implications
Your choice of system directly impacts the crew you need on site. Window wall systems, with their straightforward, floor-by-floor approach, can often be installed by smaller teams. This makes them a great fit for villa renovations where site access might be tricky.
Curtain walls, especially sophisticated unitised systems, demand highly specialised installation teams. The use of prefabricated units is growing in the region. These systems can lead to 30-40% faster installation times and slash labour costs by up to 20% compared to traditional "stick-built" methods, making them ideal for ambitious, fast-paced projects in Dubai and Abu Dhabi.
For architects working in the UAE, getting familiar with the specifics of systems like the Gulf Extrusion AlGhurair CW 50mm curtain wall façade is key to balancing visionary design with practical project delivery.
Performance Against UAE Heat, Dust, and Noise
Choosing between a window wall and a curtain wall in the UAE isn't just an aesthetic decision—it's about performance. We constantly face intense solar heat, fine desert dust, humidity, and city noise. The system you pick directly affects your villa's energy bills, indoor comfort, and durability.
A curtain wall’s main strength is its continuous, unbroken seal. Since it hangs outside the building's structure, it creates a single, unified barrier. This design has very few joints, meaning fewer weak spots for air and water to enter—a huge advantage during the
UAE's humid months and sandstorms.
That said, modern window wall systems are now serious contenders. For residential projects in communities like Arabian Ranches, a top-tier window wall can deliver outstanding results without the higher cost and structural complexity of a curtain wall.
Thermal Insulation and Energy Efficiency
In the UAE, keeping solar heat out is the main goal. A poorly insulated system means your AC runs non-stop, and your DEWA bills climb. For both window walls and curtain walls, performance comes down to the quality of the glass and the frame.
You must specify double or triple glazing with low-emissivity (low-e) coatings. This special coating reflects the sun's heat back outside while letting in natural light, so your home stays bright without overheating.
The frame's design is just as important. Advanced systems, like Cortizo's Cor Vision Plus or Vetromax façade systems, incorporate a thermal break. This is a layer of non-conductive material separating the inner and outer aluminium profiles, stopping heat from transferring through the frame into your home.
"A key metric is the U-value, which measures how well a system prevents heat transfer. The rule is simple: a lower U-value means better insulation. High-performance systems achieve low U-values, translating into real energy savings."
Resisting Dust and Noise Intrusion
A system’s performance in the UAE goes beyond temperature control. It’s also about keeping your home clean and quiet. With their continuous gaskets, curtain walls are naturally better at creating an airtight seal against dust, protecting your indoor air quality.
However, a well-designed window wall can be just as effective. Top systems from manufacturers like Deceuninck (uPVC) or Cortizo (aluminium) use multi-point locking and high-quality compression seals that form a tight barrier against fine dust.
When it comes to soundproofing, the glass is what truly matters. If your villa is near a busy road in Dubai, specifying acoustic laminated glass for either system is a game-changer. You can learn more about how different window materials contribute to soundproofing solutions for your home. A properly sealed frame and the right acoustic glazing create a peaceful retreat. Explore the importance of overall indoor air quality in your home.
If you're planning a renovation or villa upgrade in the UAE, Swift Rooms can help you specify the best window and door system for your project. Contact us today for a quote or consultation.
Achieving Your Ideal Design and Aesthetic
Choosing between a window wall and a curtain wall is one of the biggest architectural decisions you'll make. It fundamentally defines a property's character and aesthetic, and each system is geared towards very different design goals, especially here in the UAE.
A curtain wall is the go-to choice when you want a seamless, monolithic glass surface. This is the system that creates those iconic, ultra-modern looks you see on high-end properties from Dubai Marina to Emirates Hills. Because the glass hangs outside the building's structure, it dramatically reduces visible frames and makes huge, uninterrupted panels possible.
Uninterrupted Views and Modern Statements
For a flagship villa on Palm Jumeirah or a grand atrium in a private mansion, nothing delivers the same visual punch as a curtain wall. The system is designed to handle impressively large custom glass units with the slimmest possible sightlines, such as those offered by Vetromax’s façade systems. The result is a sleek, sophisticated finish that almost dissolves the barrier between inside and out.
It produces a clean, continuous facade that feels incredibly expansive and exclusive. This aesthetic is a perfect match for contemporary architectural styles that value transparency and minimalism.
Versatility and Functional Design
On the other hand, a window wall gives you a different kind of design freedom focused on functionality and versatility. Since it's installed between the floor slabs, it creates a more segmented, framed look. This isn't a drawback; it's a feature that can be used to bring rhythm and texture to a building's facade.
This segmentation is where its real strength lies. One of its biggest advantages is how easily you can integrate operable elements like windows and doors.
"The core aesthetic difference is this: curtain walls create a single, unbroken glass plane for maximum drama. Window walls create a functional, customisable canvas where you can easily mix in windows, doors, and other materials."
Think about a modern villa in Arabian Ranches. A window wall system, like the Cortizo Cor 70 or a Vetro Slide system, could be set up with a mix of fixed panels, sliding doors, and windows. This lets architects design dynamic openings that connect indoor and outdoor living areas. This adaptability makes it a fantastic solution for renovations and new builds aiming for practical elegance.
If you're planning a renovation or villa upgrade in the UAE, Swift Rooms can help you specify the best window and door system for your project. Contact us today for a quote or consultation.
A Look at Costs and Long-Term Value
When you're planning a villa project in the UAE, the budget is always a key consideration. The initial cost difference between a window wall and a curtain wall is substantial and often becomes a major deciding factor for homes across Dubai and Abu Dhabi.
Put simply, a window wall system is almost always the more budget-friendly option per square metre. This comes down to its more straightforward, floor-by-floor installation and less demanding engineering. For a typical villa upgrade in a community like Arabian Ranches, this makes window walls a go-to choice for achieving a sleek, modern glass look without the high price tag.
Initial Investment Versus Long-Term Savings
While a window wall is easier on the initial budget, a high-performance curtain wall offers strong long-term value. Yes, the upfront investment is higher, but you often recoup that cost over time through superior energy efficiency, which means noticeably lower DEWA bills. Because it's a continuous system, a curtain wall is simply better at stopping thermal bridging and air leaks.
Thinking long-term is essential. It's not just about material costs today; a proper cost analysis involves understanding custom home building costs where the building's future energy performance is a huge piece of the puzzle.
"In the UAE's climate, air conditioning is one of the biggest household expenses. The superior thermal performance of a curtain wall can genuinely translate into thousands of dirhams in savings over the life of your home."
Maintenance Costs and What the Market is Doing
Maintenance is another practical point to consider. If a single panel in a window wall gets damaged, fixing it is usually a simple and relatively cheap job. Repairing a section of a continuous curtain wall can be more involved and expensive, sometimes needing specialised equipment.
It's also worth noting that the market itself is changing. The aluminium curtain wall market in the Middle East & Africa is thriving, fueled by new, more cost-effective aluminium systems that are incredibly durable and efficient. You can dive deeper into the many reasons architects prefer aluminium systems to understand this trend.
If you're mapping out a renovation or a new villa in the UAE, the team at Swift Rooms can walk you through the specifics and help you select the ideal window and door system for your project. Get in touch with us for a quote or a chat about your plans.
Making the Right Choice for Your Villa
Ultimately, deciding between a window wall and a curtain wall comes down to the specific goals, budget, and architectural vision for your project. By looking closely at the key differences in structure, performance, and cost, we can map out clear recommendations for villa projects across the UAE.
This isn't just about looks; it's a strategic decision that affects everything from construction timelines to long-term energy bills. Understanding the nuances ensures the final result truly matches your expectations.
Window Walls: Ideal for Renovations and New Builds
For most villa renovations or new builds in communities like Arabian Ranches or Jumeirah Islands, a high-performance window wall is often the best choice. These systems strike a balance between cost, performance, and design flexibility.
- Practical Functionality: With systems like the Cortizo Cor 70, Deceuninck's uPVC ranges, or Vetro Slide, it's easy to integrate operable windows and sliding doors. This is perfect for creating a seamless flow between indoor and outdoor living spaces.
- Budget-Friendly: Installation is simpler and handled floor-by-floor, which means lower initial costs for materials and labour. This makes window walls a practical choice for a huge range of residential projects.
Curtain Walls: For Luxury and Architectural Statements
If you're working on a high-end, architecturally ambitious luxury villa on Palm Jumeirah or in Emirates Hills, a curtain wall system is the definitive choice. It's the best option when the goal is a seamless, minimalist glass aesthetic with top-tier thermal performance.
The market reflects this, with the MEA glass curtain wall sector growing due to the UAE's focus on green, energy-efficient building facades. You can dig deeper into the MEA glass curtain wall market trends on stellarmr.com.
"For projects that demand an uninterrupted glass skin and the highest levels of performance against heat and dust, a custom-engineered curtain wall is in a league of its own. It elevates a property from a residence to a piece of modern architecture."
No matter the scale of your project, getting expert advice is crucial to specifying the perfect system for your unique needs and the specific challenges of our climate.
If you're planning a renovation or a villa upgrade in the UAE, Swift Rooms can help you specify the best window and door system for your project. Contact us today for a quote or a chat about your plans.
Frequently Asked Questions
When weighing up window walls against curtain walls for a project in the UAE, the same questions often arise. It's all about understanding the specifics of performance, practicality, and local regulations. Getting these details right is what makes for a great choice for your villa.
Let’s break down some of the most common queries we hear from architects and homeowners.
Can You Include Opening Windows in a Curtain Wall?
Yes, you can, but it’s not as straightforward as with a window wall. It demands clever engineering and planning. Window walls are inherently designed to accommodate operable sections, like sliding doors (e.g., Cortizo's Cor Vision Plus) or casement windows, making it a simple integration.
With a curtain wall, you have to work within its structural grid. This usually means adding specially designed projected or casement windows engineered to uphold the system's air and water integrity. This extra complexity can add to the project's timeline and overall cost.
Which System Is Better for Noise Reduction in Busy Areas?
Both systems can provide fantastic noise reduction, which is essential in vibrant areas like Dubai Marina or Downtown Dubai. A curtain wall often has an edge because its continuous, unbroken seal leaves fewer weak points for sound to penetrate.
However, a high-performance window wall is more than capable of providing excellent soundproofing. When specified with acoustic laminated glass and robust, multi-point locking seals, a top-tier system from a manufacturer like Cortizo or Deceuninck will create the peaceful indoor sanctuary you're looking for. It really comes down to the quality of the glass and seals, not just the system itself.
"When it comes to sound insulation, the glass is the real hero. High-performance acoustic glazing in either a window wall or curtain wall can cut perceived noise by over 75%, effectively silencing a bustling street outside."
Do These Systems Meet UAE Green Building Codes?
Absolutely. Leading manufacturers are well-versed in our regional standards, from Abu Dhabi's Estidama Pearl Rating System to Dubai's Al Sa'fat green building regulations. Reputable brands like Cortizo, Deceuninck, and Vetromax design their products to meet and often exceed these codes.
They achieve this through key innovations:
- Thermal Breaks: Insulating strips built into aluminium frames that stop heat from conducting through the metal.
- Low-E Coated Glass: A microscopic coating on the glass that reflects solar heat away while letting visible light pass through, reducing the load on your air conditioning.
- Superior Air Tightness: Advanced gaskets and sealing technology prevent conditioned air from escaping, which is a huge factor in energy efficiency.
Specifying a system with these features ensures your villa is not only compliant with the latest regulations but also more comfortable and cheaper to cool.
